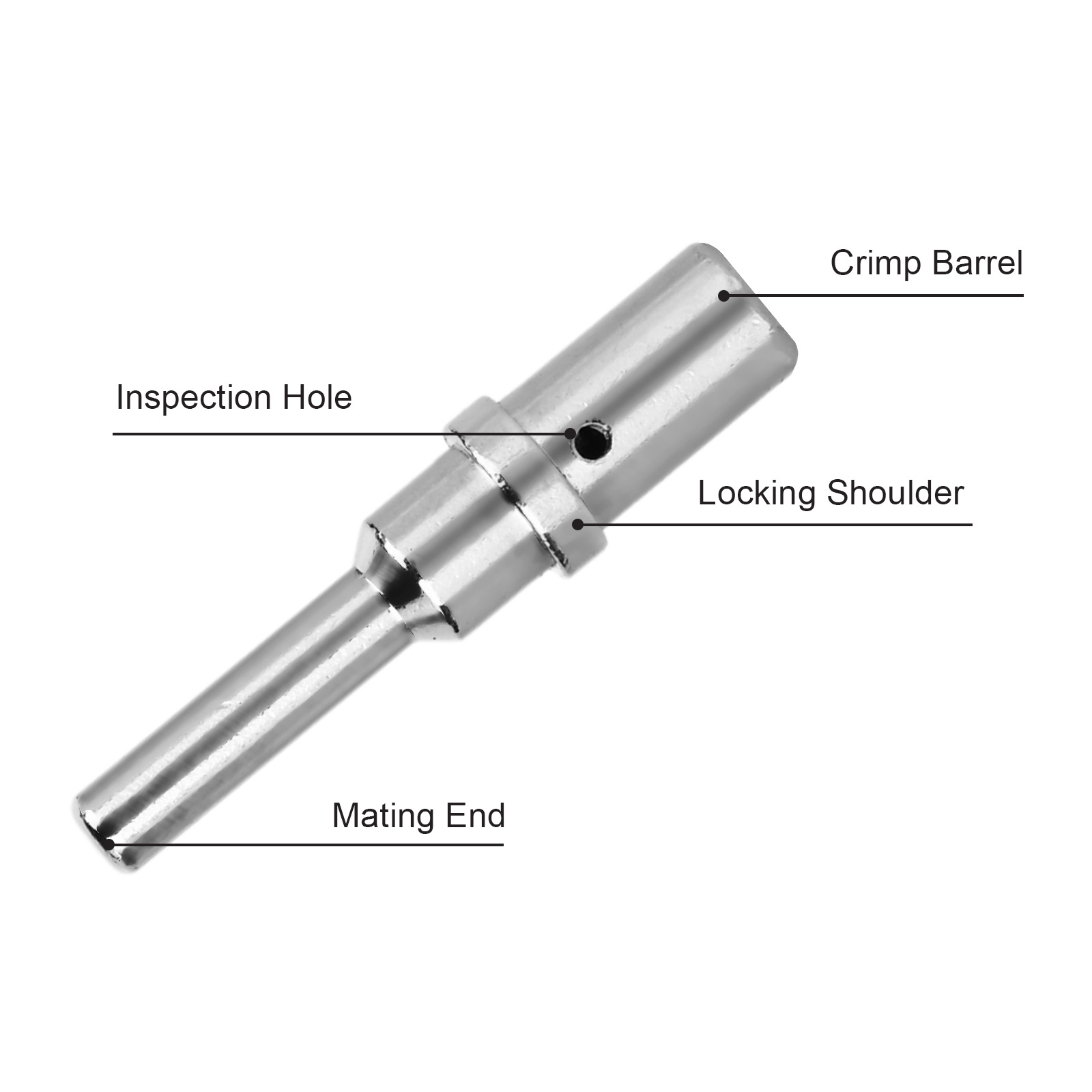

JRready 0460-204-12141 Pin Terminal
1. Compatible with wire range 12-16 AWG (3.0-1.0 mm²)；
2. Mating socket 0462-203-12141
3. Compatible with same-spec products from other brands on the market
4. Fully Nickel-Plated
5. Rated Current: 25A
2. Mating socket 0462-203-12141
3. Compatible with same-spec products from other brands on the market
4. Fully Nickel-Plated
5. Rated Current: 25A
| Brand | JRready | Part Number | 0460-204-12141 |
| Category | DT Series | Colour | Silver |

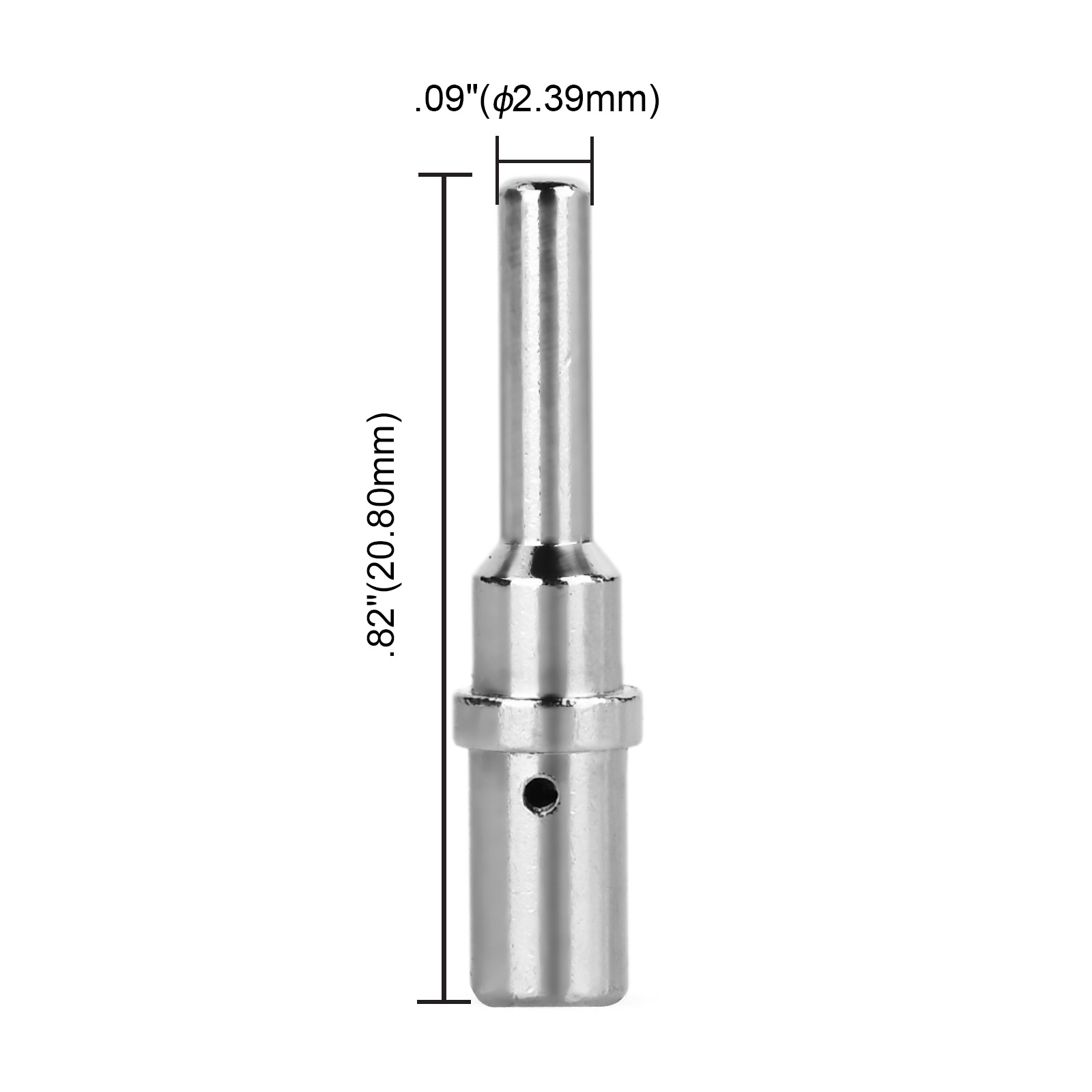

| Material | Tin Bronze | Dimension | Length: 20.80 mm, Diameter: 2.39 mm |
| Country of Origin | China | Weight | 1g |
| Application | Compatible with DTP, HD10, HDP20, HD30, DRB, and STRIKE series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
