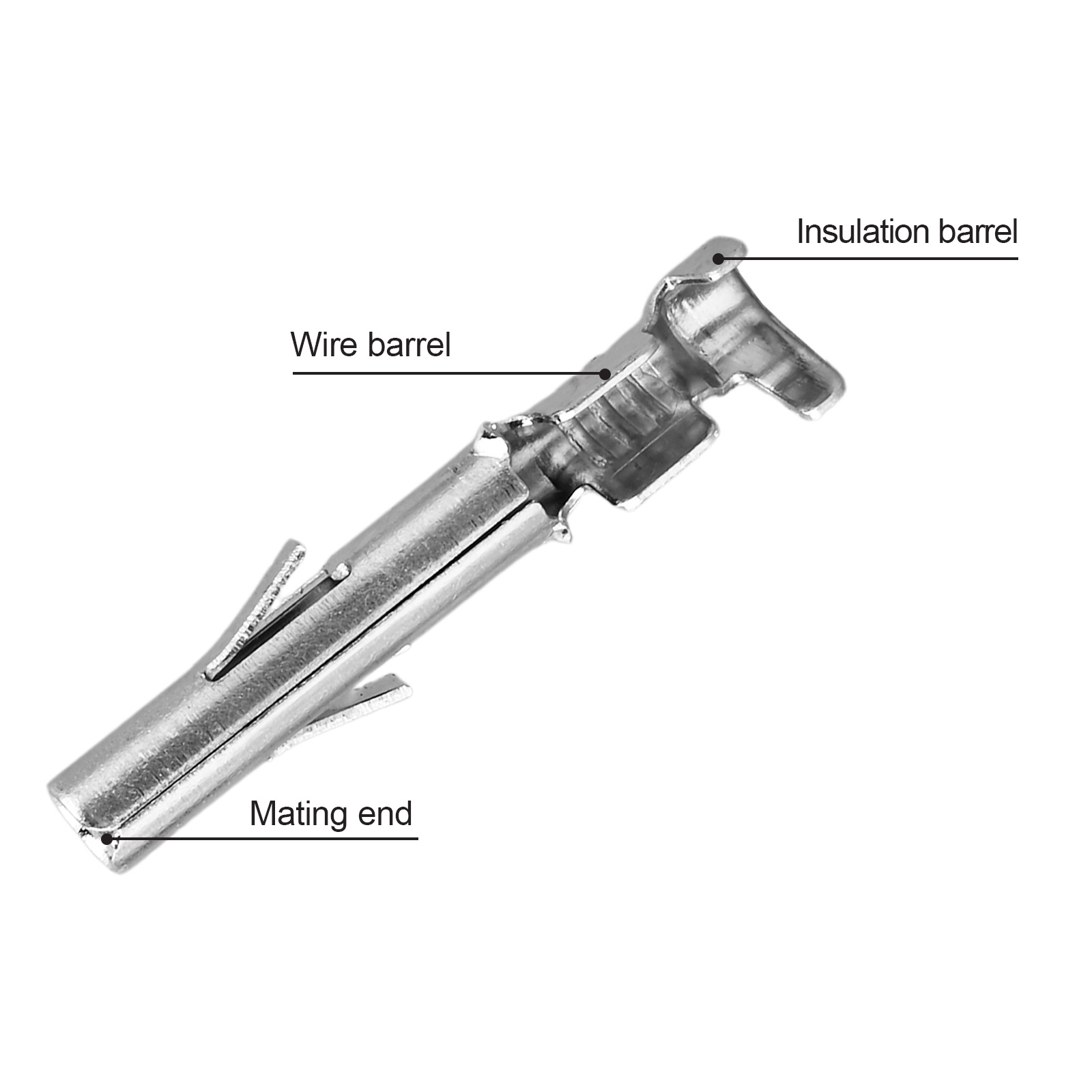

JRready JRN001-TBF Terminal
1.Compatible wire range: 20-14AWG (0.5-2.0mm)
2.Mating pin: JRN001-TBM
3.Brass with nickel plating - tin surface finish
4.Rated current: 13.5A
2.Mating pin: JRN001-TBM
3.Brass with nickel plating - tin surface finish
4.Rated current: 13.5A
| Brand | JRready | Part Number | JRN001-TBF |
| Category | JRN001 (6.35) Series | Colour | Silver |

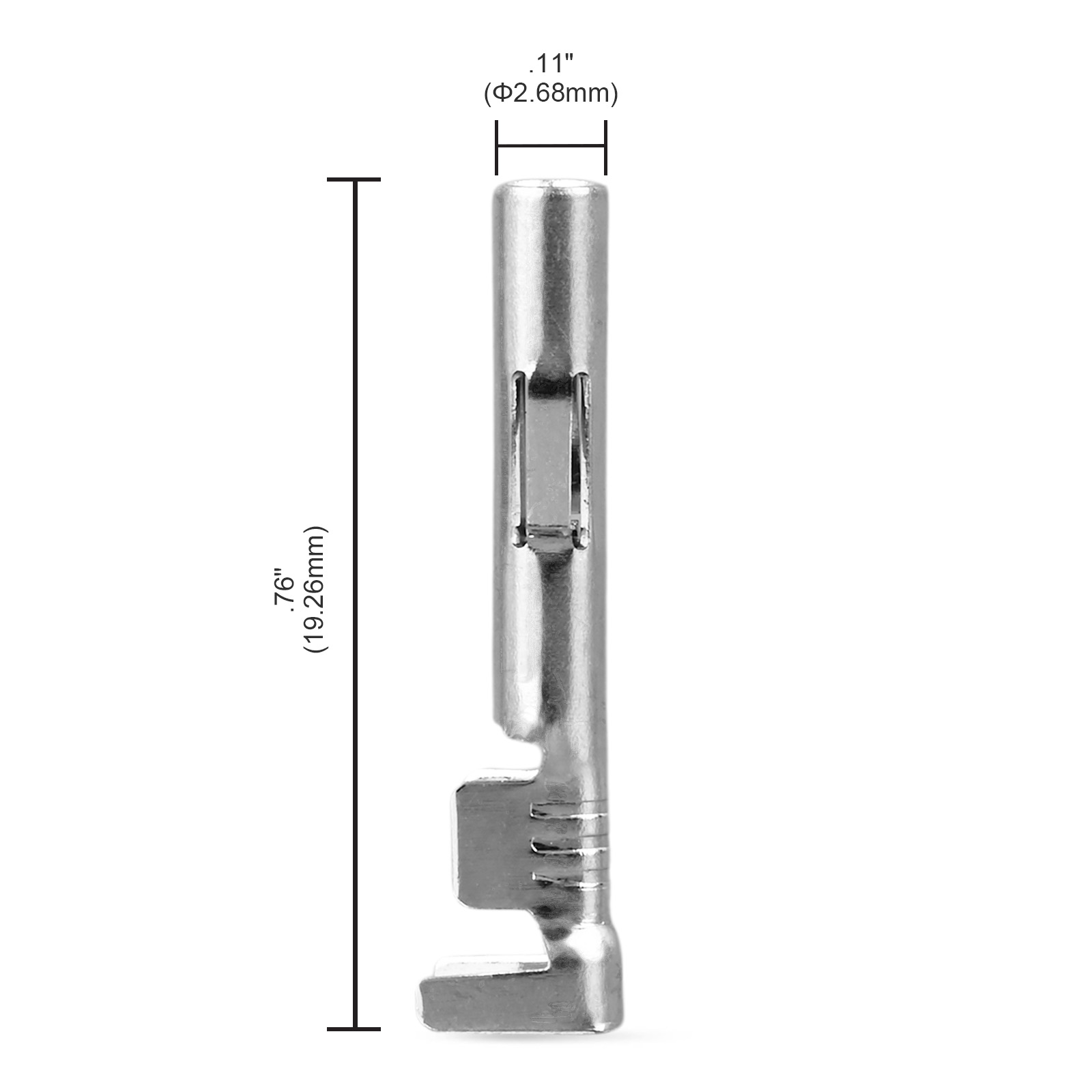

| Material | Brass with nickel plating - tin surface finish | Dimension | Length: 19.26mm, Diameter: 2.68mm |
| Country of Origin | China | Weight | 0.35g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 600V | Rated Current | 13.5A |
