JRready JRN001-TBM Terminal
1. Compatible wire range: 20-14AWG (0.5-2.0mm)
2. Mating pin: JRNOO1-TBF
3. Brass with nickel plating - tin surface finish
4. Rated current: 13.5A
2. Mating pin: JRNOO1-TBF
3. Brass with nickel plating - tin surface finish
4. Rated current: 13.5A
| Brand | JRready | Part Number | JRN001-TBM |
| Category | JRN001 (6.35) Series | Colour | Silver |

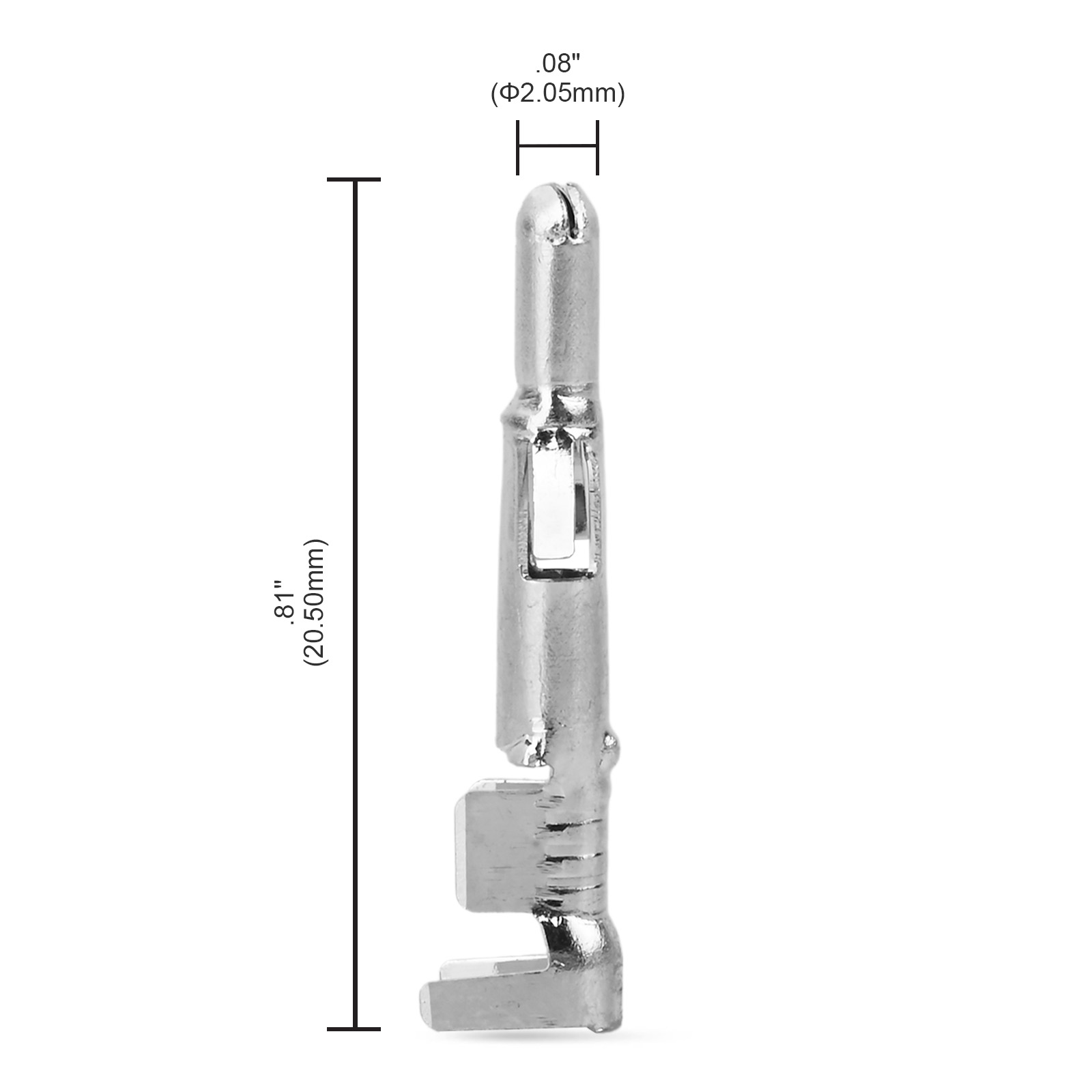

| Material | Brass with nickel plating - tin surface finish | Dimension | Length: 20.5 mm, Diameter: 2.05 mm |
| Country of Origin | China | Weight | 0.33g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | 0 |
| Rated Voltage | 600V | Rated Current | 13.5A |
