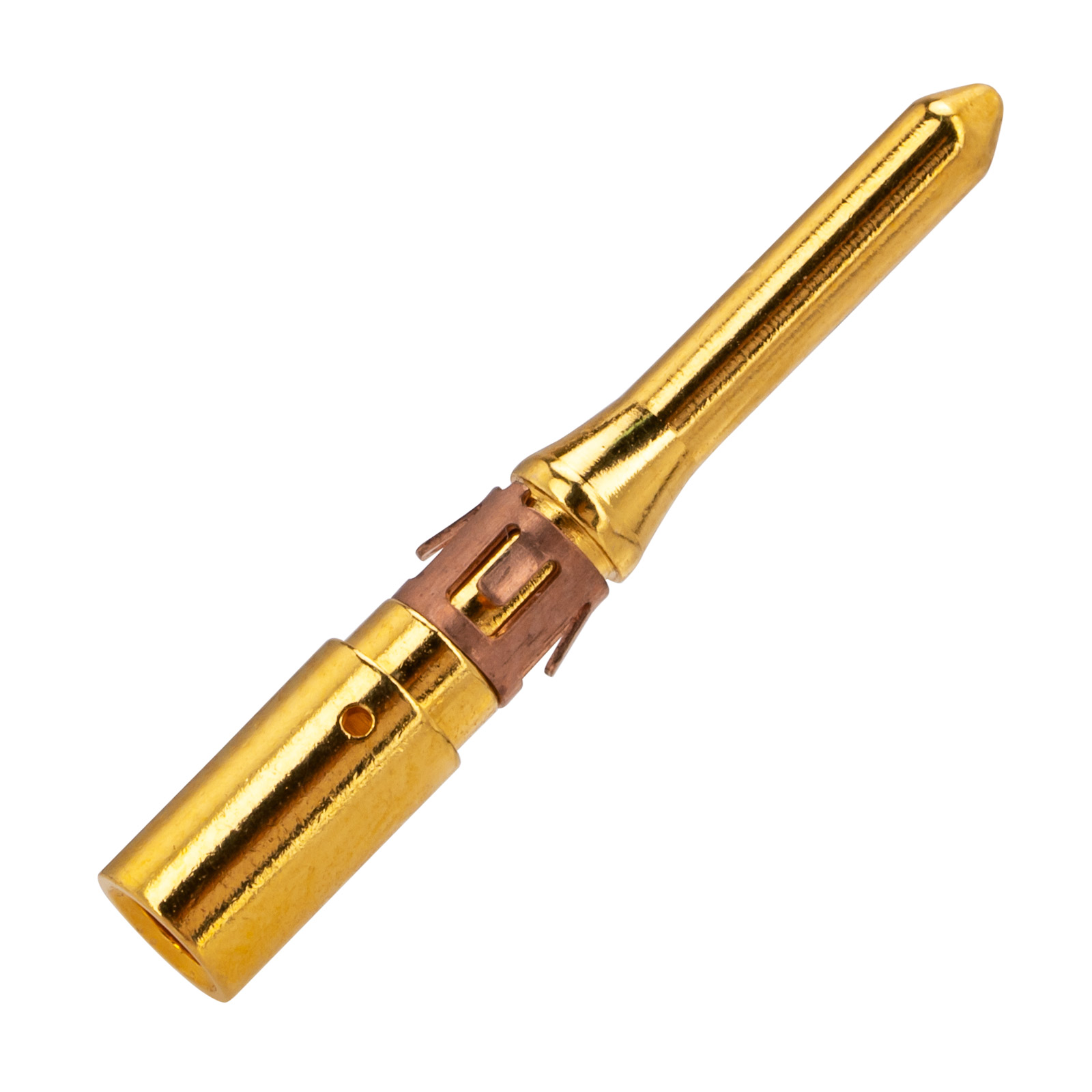

JRready JRSSW-CP20-2.0 Machined Crimping Grounding Male Terminal
1. Contact Material: Gold-Plated Copper Alloy
2. Salt Spray Test: 72 hours
3. Termination Method: Crimping
4. Wire Gauge Range: 14AWG~18AWG (0.75~2.5mm²)
5. Rated Current: 16A Max
2. Salt Spray Test: 72 hours
3. Termination Method: Crimping
4. Wire Gauge Range: 14AWG~18AWG (0.75~2.5mm²)
5. Rated Current: 16A Max
| Brand | JRready | Part Number | JRSSW-CP20-MP03-S0042 |
| Category | JRSSW Series Connector | Colour | Gold-Plated |

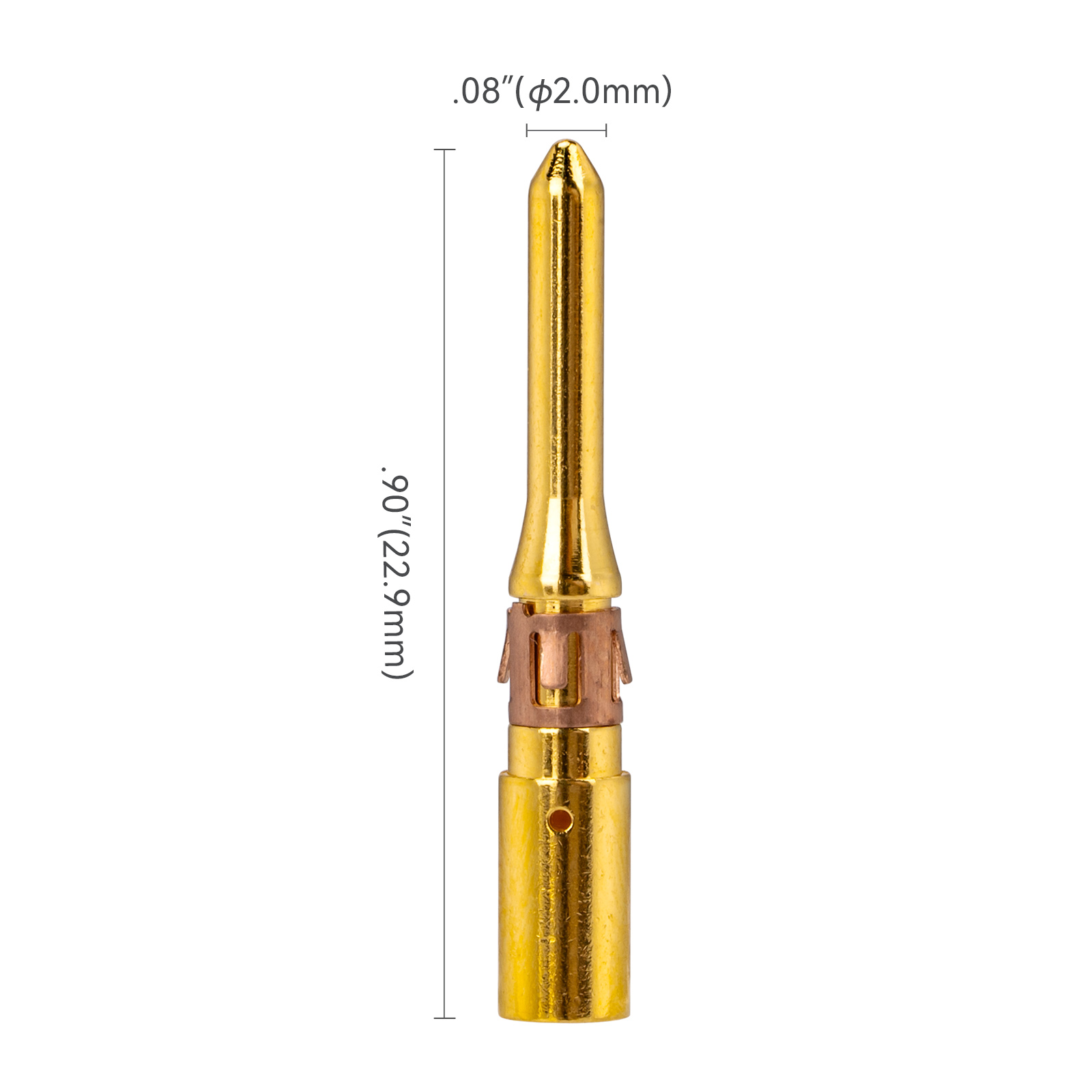

| Material | Gold-Plated Copper Alloy | Dimension | φ3.5*22.9mm |
| Country of Origin | CHINA | Weight | 0.9g |
| Application | JRSSW-CP20 Industrial Waterproof Connector | ||
| Working Temperature | / | Working Pressure | / |
| Rated Voltage | / | Rated Current | / |
